SPECIAL PRODUCTION and SERVICES

SPECIAL PRODUCTION and SERVICES

                  For any particular tailored-made steel required by the customer, the company has the blanking and forming line completed with the press and bending machine to make any specific ready-made or semi-made in different form of shapes and sizes by pumping metal parts in an instant pieces or semi-instant pieces such as automobile part, electronic part and roll-metal package.

Press Facilities

Blanking Facilities

Blanking Facilities

                             No. 1 Line              No. 2 Line
Thickness         2.0 - 4.5 mm          0.5 - 2.3 mm
Width          450 - 1,550 mm    450 - 1,300 mm
Coil weight         15,000 kgs            15,000 kgs
Coil I/D           508, 610 mm         508, 610 mm
Coil O/D               1,500 mm             1,500 mm
Capacity                 500 tons                300 tons
Stroke                     500 mm                600 mm
No. of Stroke     12 STK/min          14 STK/min

Press Machine Facilities

Press Machine Facilities

Capacity          60 - 200 tons

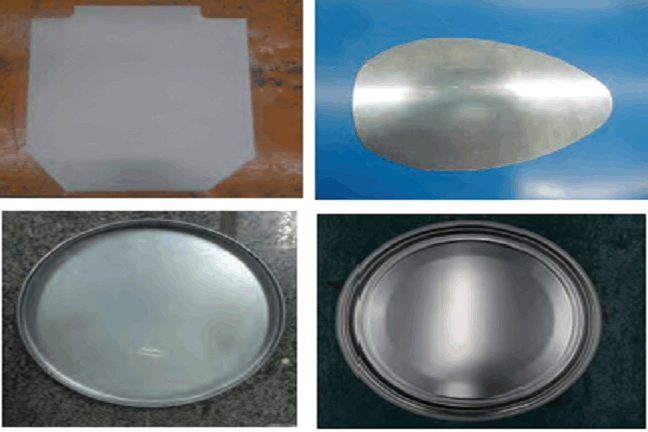

Sample Product
