     MATERIAL SUPPLY

          The Company sells and provides services of cutting steel which the most efficient machine along with modern technology that can transform any sheet and/or coil steel from 0.25 to 12 millimeters thickness by 2000 millimeters width at any length required by customers. There are 2 types of product as:
               Cutting Sheet  which can be tailored made at any length, width and thickness to suit the customers's requirements.
               Slitting Coil  which can be tailored made from mother coil specified by customers at any length, width and thickness to suit the customer's requirements in order that they will be in the fabrication process later.
           The production of Cutting Sheet and Slitting Coil will be in the downstream industries as: Automotive Industry, Electrical Appliances & Electronics Industry, Furniture Industry and other related industries using steel as raw materials in production processes.

Kind of Materials and Specifications for Cutting Products

KIND OF MATERIAL JIS SPECIFICATIONS  FEATURE
HOT ROLLED STEELG 3131


G3113
SPHC, SPHC-P/O
SPHD, SPHD-P/O
SPHE, SPHE-P/O
SAPHxxx(P/O)
General use
Drawing
Deep Drawing
Automotive
COLD ROLLED STEEL

G 3141

SPCC-SD
SPCD-SD
SPCEN-SD
SPCC-XD
SPCC-SB
Commercial
Drawing
Deep Drawing
Hardness
Bright
ZINC COATED STEEL

G 3313

G 3302
SECC, etc.

SGCC, etc.
Electro-Galvanized
Hot Dip Galvanized
Chromate Free
ALUMINIUM COATED STEEL
( Heat resistance usage )

G 3314

SA1C
SA1D
SA1E
Commercial
Drawing
Deep Drawing
SILICON STEEL
( Electrical usage )
C 2550

50 HxxxxL
35 HxxxxL
0.50 mm. ( thick )
0.35 mm. ( thick )
STAINLESS STEEL
( Special Usage )
G 4312

YUS 409 D
YUS 436 S
Heat Resistant for Automotive
SPECIAL HARDNESS STEEL
G 4051
SxxC, SCM, SK
Gear, Automotive, Sprocket, Blade
SUPERIOR QUALITY :
ZAM, SUPER DYMA, ECO-TRIO, etc.

Cutting Facilities

Shearing Line


Shearing Line

Thickness                      0.30 - 12.0 mm
Width                           310 - 2,000 mm
Outside diameter                  1,800 mm
Max. Mother coil weight     15,000 kg
Length                                  5,000 mm

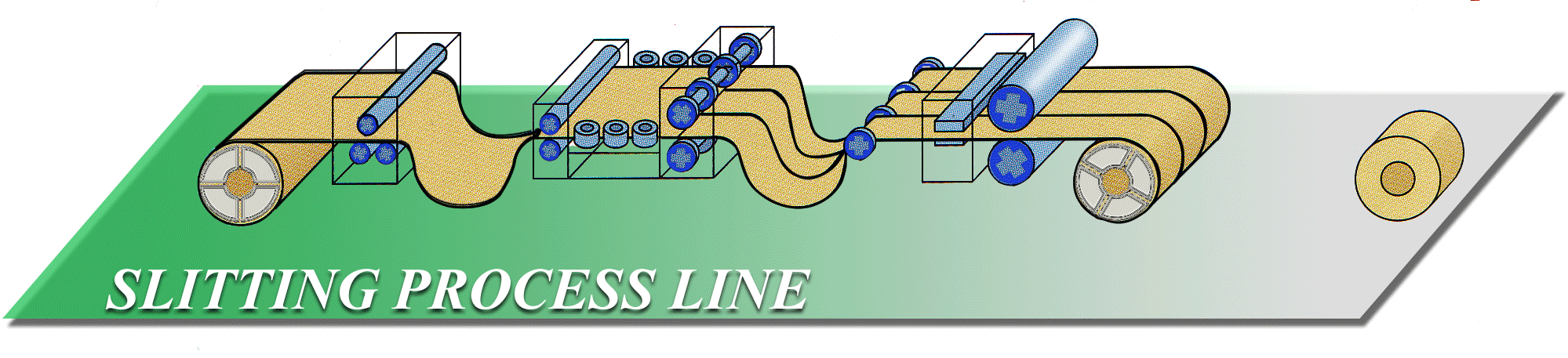

Slitting Line

Slitting Line

Thickness                       0.20 - 9.0 mm
Width                          300 - 1,600 mm
Outside diameter                 1,800 mm
Max.Mother coil weight     15,000 kg
Max.Weight                        15,000 kg

Mini Shearing Line



Mini Shearing Line

Thickness                    0.30 - 6.35 mm
Width                              25 - 650 mm
Outside diameter                1,500 mm
Max. Mother coil weight     5,000 kg
Length                                3,000 mm

Mini Slitting Line

Mini Slitting Line

Thickness                   0.50 - 2.30 mm
Width                             20 - 500 mm
Outside diameter               1,200 mm
Max. Mother coil weight    3,000 kg
Max. Weight                        3,000 kg

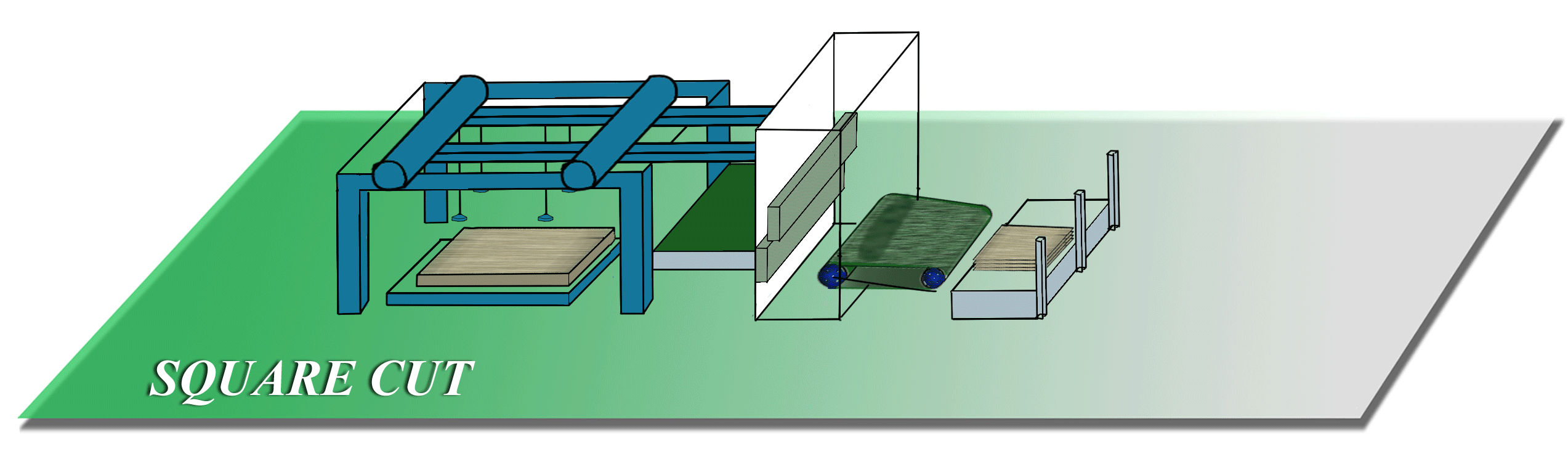

Square Shear



Square Shear

Thickness    0.40 - 12.0 mm
Width           50 - 3,500 mm
Weight    1,500 - 5,000 kg
Length                2,500 mm

Re-Rolling Mills




Re-Rolling Mills

0.80 - 5.0 x 350 mm
